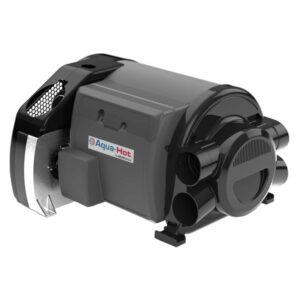

Aqua-Hot 100 series


The Aqua-Hot 100D Series is a 2-in-1 Hydronic Heating System that can provide heat and tank-less hot water on demand using an external diesel burner and a built-in electric heating element.
The system heats a glycol solution that is stored in the Aqua-Hot’s boiler tank. This fluid solution must be up to operating temperature (about 80°C) before the Aqua-Hot will provide interior heat or hot water; it may take up to 10-15 minutes after the switching on of the Diesel burner and/or the electric heating element.


Features

• Fueled by Diesel and operated by 12 V for off grid applications.
• Available with a 220 V electric element.
• The all-in-one design of the Aqua-Hot results in considerable cost and space savings.
• High Altitude Ready: Great performances up to 2.000 m
• Low Emissions: Aqua-Hot new low emission systems are fume-less and odorless. It’s good for you, your neighbors, and the environment.
• Single, self-contained unit: Delivers residential-style moist interior heating using heat exchangers with the ability to deliver a luxurious supply of continuous hot water at 38°- 40°C at a rate of 3,5 l/min. It’s just like the luxury comfort in a traditional home or high-end diesel motorhome.
• Quiet: Low voltage fans provide an almost completely noise free operation.
• Fast Installs: Heating, domestic water, and fuel supply/outlet ports are located on the rear side of the tank for an easy connection access.
• User Friendly: Heat controlled by your LCD touch control and endless hot water by simply turning on a faucet.
• RV-C Open Source: Easy to integrate in the RV’s control panel.
• Cozy Heat Exchangers: Hidronic-style heating with the speed of the forced air.

Specifications

• Maximum Interior Heat 22,000 Btu/hr (6,5 kW)
• Continuous, Tank-less Hot Water of 38°- 40°C at 3,5 l/min
• Can control up to 3 different Climate Zones inside the vehicle
• Fueled by Diesel
• Electric Element (1,5 kW)
• Size (29,2 H x 19,0 W x 44,8 L) cm
• Weight 20,4 Kg (empty) – 26,7 Kg (full)
• Average Current Draw – 5A, initial pick 7/8A
• Fuel Consumption: 0,31 to 0,49 l/h
